The ARCH
Leg Positioning System™
Measurable, reproducible positioning for anterior hip replacement and femoral fractures
- Proven clinical use in the US since 2006
- Independent, graduated positioning control
- Compatible with existing OR tables
Direct anterior hip replacement and femoral fracture procedures place high demands on femoral positioning and surgical access.
Effective exposure requires controlled traction, rotation, extension, and adduction that can be adjusted progressively throughout the procedure.
The ARCH is designed to support these demands with predictable, repeatable positioning.
System overview
The ARCH is built to support controlled, progressive femoral positioning during anterior hip replacement and femoral fracture procedures.
The system features a patented, arc-shaped leg-positioning track with incremental angle and traction control. Its geometry aligns with the rotational centre of the hip, allowing the operative leg to move through a defined hemisphere while maintaining constant traction. Incremental extension enables gradual soft-tissue release and controlled progression without abrupt repositioning.
The result is a stable platform designed to behave consistently under load throughout the procedure.
Intraoperative control & positioning mechanics
- Independent traction, rotation, extension, and adduction controls
- Constant traction maintained throughout leg movement
- Incremental extension in 5° steps for controlled positioning
- Rotation and adduction in 10° increments
These features allow precise femoral positioning while maintaining stability during exposure and manipulation.
Setup, compatibility & practical fit
The ARCH is designed to integrate into existing operating rooms.
- Free-standing system compatible with universal OR table designs
- Easy C-arm access
- Fixed arc provides stable support during demanding procedures, including fracture cases
- Quick setup
- All-mechanical design reduces maintenance and repairs compared to competitive systems
The system effectively transforms a standard OR table into a dedicated positioning solution for anterior hip and femoral fracture procedures.
System configurations / Accessories
Customize your ARCH system to suit various surgeon preferences and imaging requirements.

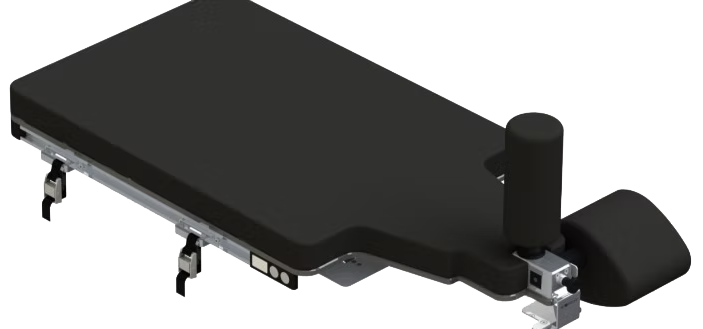

Provides hip and leg counter traction and includes a femoral support to elevate the proximal femur during extension.

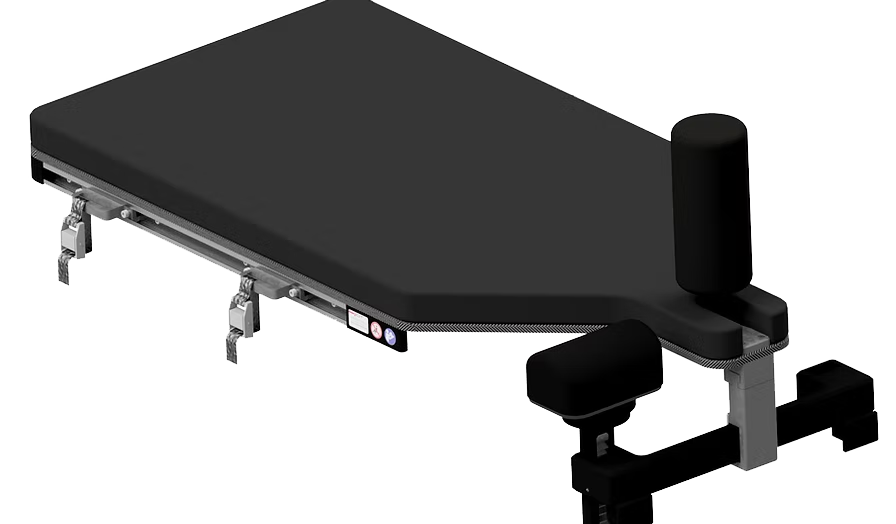

Provides counter-traction and firm positioning of the non-operative leg.
Tabletop accessory designed to improve surgical access and radiolucency with C-arm use.
Tabletop accessory enabling the use of x-ray cassettes for full pelvic visualization.
If you’d like to evaluate The ARCH, we’d be glad to give you a live virtual demo, so you can see the product in action and ask any questions.
