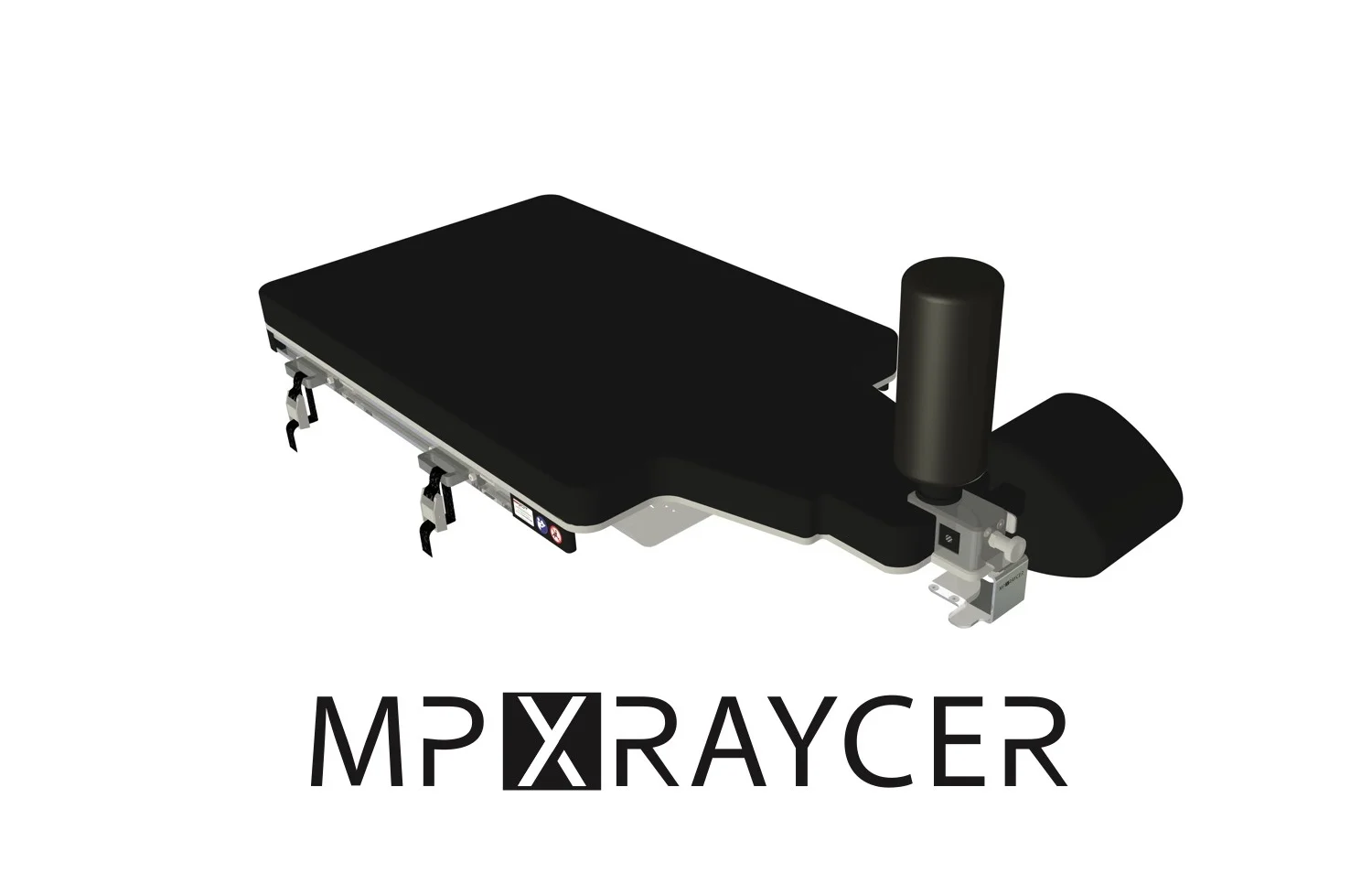

This tabletop accessory improves surgical access and allows x-ray cassettes to be used with standard OR tables for full pelvic x-ray visualization during anterior THR. Cutouts under the hip allow for soft-tissue fallout, easing surgical access to the acetabulum. The removable, adjustable femoral support offers four fulcrum height settings to lift the proximal end of the femur for optimal exposure.
​
Features
Exceptional Visualization
The ratcheting x-ray cassette holder allows digital x-ray
cassettes to be swiftly and precisely positioned under the patient’s pelvis - enabling intraoperative, undistorted full pelvic x-rays.
Improved Acetabular Access
Cutouts under the hip allow for soft tissue fallout –easing surgical access to the acetabulum.
Highly Configurable
The asymmetric femoral support provides 4 height settings – simply remove the support, rotate 90°, and reinstall to adjust height. This allows the surgeon to fine-tune the fulcrum point for femoral exposure.
To make [the ARCH] more effective yet, the addition of the MP XRAYCER makes sure you leave the OR 100% confident in your implant positioning, alignment, and leg lengths.
Specifications
X-ray Cassette /Grid Assembly Max. Size:
W: 450 mm L: 3 80 mm H: 20 mm
​
Femoral Support Height:
4 settings: 20mm, 40mm, 60mm, or 80 mm
​
Width:
19.7 in (50 cm)
​
Length:
41.7 in ( 106 cm)
Weight:
33 lb ( 15 kg}
Patient Weight Capacity:
500 lb (227 kg)*
​
*If the safe working load of the OR table used is lower than this, the OR table patient weight limit takes priority.
